Robot machine used Crossed roller bearing RA19013UUCC0 190x216x13mm application and specification,in stock,

Large Image : Robot machine used Crossed roller bearing RA19013UUCC0 190x216x13mm application and specification,in stock,

Product Details:

Place of Origin:	China
Brand Name:	JHB
Certification:	Quality Certificate
Model Number:	RA19013UUCC0

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD50
Packaging Details:	vacuumize bag
Delivery Time:	2 days
Payment Terms:	T/T,Paypal, Western Union
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Material:	GCr15	Clearance:	UU0
Lubrication:	No.2 Li Base Grease	Delivery Time:	In Stock
Seal:	With Seal

Crossed roller bearing RA19013UUCC0 190x216x13mm application and specification,in stock

We/JinHang Precision bearing Co.,LTD offer crossed roller bearing RA19013UUCC0 with double seal and CC0 Clearance. the inner ring and outer ring and roller material are GCr15. It is strictly required high precision and rigid.

The RA19013UUCC0 Bearing dimension specification as follows:

Name:	Crossed roller bearing RA19013UUCC0 Equal to THK:RA19013 IKO:CRBS1913
Boundary dimension(mm)	190x216x13mm
Inner ring:	190mm
Outer ring:	216 mm
Height:	13mm
Radial C	24.9KN
Radial Co	51.5KN
UU:	Double seal
Clearance	CCO
Delivery time	In stock
package	vacuumize bag
Rolling	Cylindrical roller
material	GCr15
lubrication	No.2 Li Base grease
Precision grade	P4 P5 Grade
weight	0.69KGS

UU:with seal attached on both sides
U:with seal attached on one side
CCO:negative clearance
CO:positive clearance
C1:positive clearance(greater than CO)
Grade: No Symbol normal grade 0
USP:USP grade rotation accuracy
P5: P5 grade rotation accuracy
The delivery time: in stock

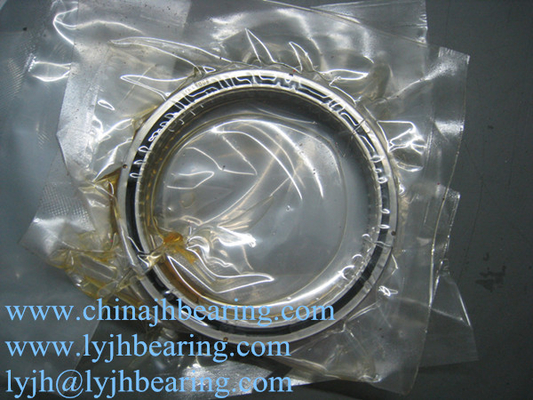

The package:vacuum packing and carton

Robot machine used Crossed roller bearing RA19013UUCC0 190x216x13mm application and specification,in stock,

Crossed roller beairng RA19013UUCC0 application:
Industry robot joints
Industry robot swiveling unit
Swiveling table of machining centers
Rotary units of manipulators
Precision rotary tables,
Medical equipment
Measuring instruments
IC Manufacturing machines

RA19013UUCC0 crossed roller bearing features:
1.High rigidity
2.High rotational accuracy
3.Strictly dimension tolerance
4.Smooth rotation
5.Compact ,space saving
6.Easy installation and adjustment
7.Light series

Besides of RA19013UUCC0 ,We can offer RA5008UUCC0,RA6008UUCC0,RA8008UUCC0,RA7008UUCC0,RA9008UUCC0,RA11008UUCC0,RA12008UUCC0,RA10008UUCC0,RA13008UUCC0,RA14008UUCC0,RA15008UUCC0,RA16013UUCC0,RA170013UUCC0,RA18013UUCC0,RA19013UUCC0,RA20013UUCC0 and customized crossed roller bearing type.

Robot machine used Crossed roller bearing RA19013UUCC0 190x216x13mm application and specification,in stock,

About the crossed roller bearing RA19013UUCC0 Installation and lubrication:
For the RA19013UUCC0 Bearing we had filled in the good No.2 Li Base grease into them,then it can be directly mounted after receiving theRA19013UUCC0 Bearing.But compared with other conventional roller bearing,the internal space is smaller,so regular refill the grease is necessary.

The grease is entering into the oil holes which in the ring and connected with oil gap.The intervals are usually six months in one year.Please use the same grease to fill into the RA19013UUCC0 Bearing.
But note that,because of the resistance of grease,the torque moment will increase in a short time the the beginning period.After redundant grease overflows from the seals ,It will recover the normal torque value.
